Sell SMS routes over SMPP

An SMS route works like a voice route: you list it, buyers purchase it and send traffic, and you're paid per message. The difference is the connection: TelecomsXchange binds to your SMSC over SMPP and submits each message to you.

Before you start#

• Know your SMSC's IP address and port and decide the system ID and password TelecomsXchange will bind with.
• Allow the TelecomsXchange platform IP, 174.136.44.213, on your firewall. See Whitelist TelecomsXchange.

How do I add an SMS route?#

1. Go to Routes → My Routes and click Add Route.
2. Under Protocol, choose SMS (SMPP).
3. Fill in:
   • Name and Short Memo, as for a voice route.
   • IP Address and port of your SMSC, as 1.2.3.4:2775.
   • SMPP System Id and SMPP Password: the credentials TelecomsXchange binds with. The system ID must be unique on the platform.
   • SMPP Sessions: how many binds TelecomsXchange may open at once, 1 to 100.
   • SMPP Session Timeout: seconds before an idle session is dropped, 1 to 300.
   • SMPP Enquire Link Interval: seconds between keep-alives, 10 to 600, or 0 to disable. It must be shorter than the session timeout.
   • Field for Messages: short_message or message_payload, whichever your SMSC reads the text from. TelecomsXchange moves the text into that field for you.
   • Route Type (QoS), Publicity and the other options described in Add your first route.
4. Click Add Route.

The route gets a Buyers Prefix, the tech prefix buyers put in front of destination numbers; it is shown read-only on the route's edit page.

What else can I set on the route?#

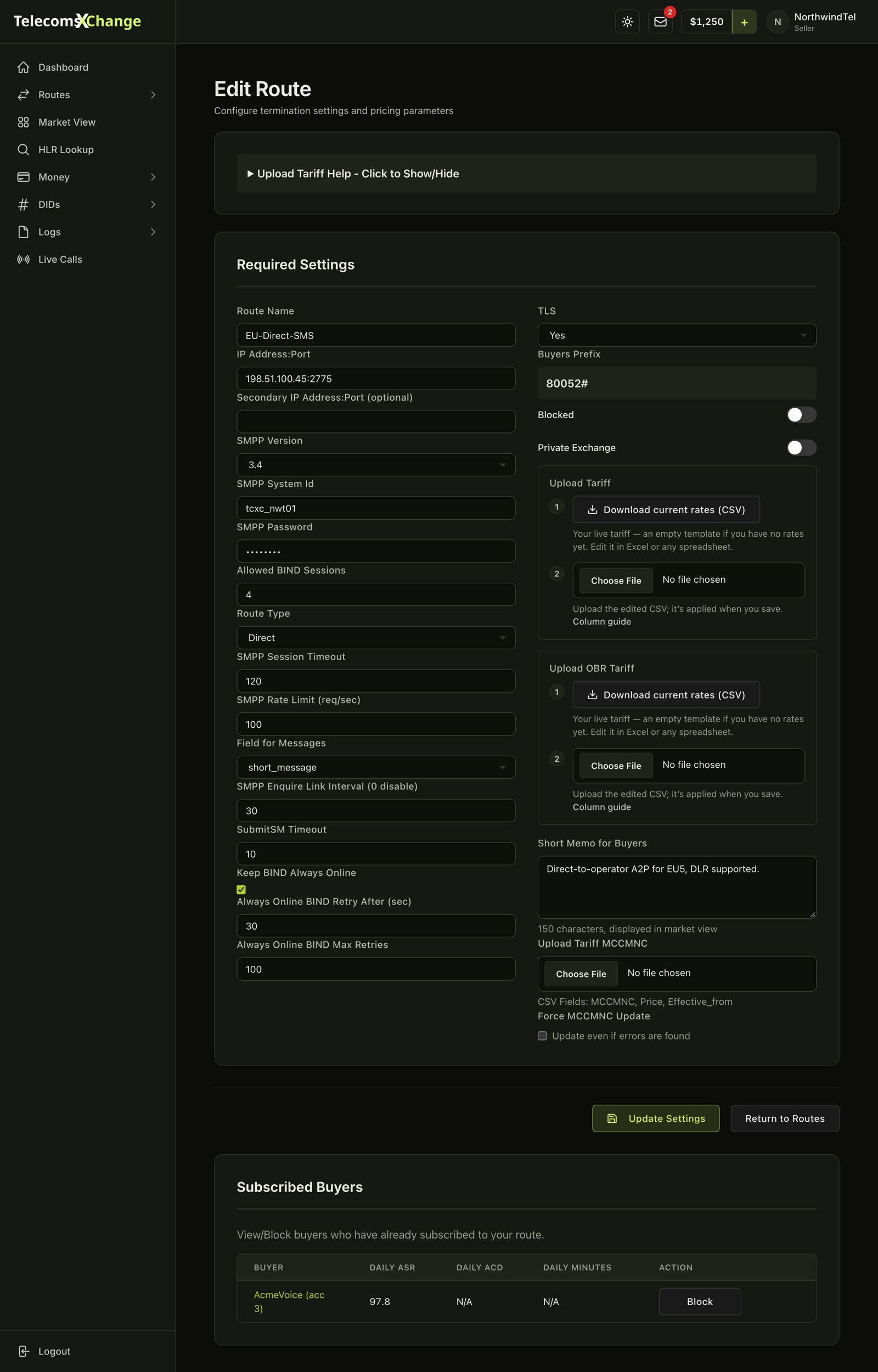

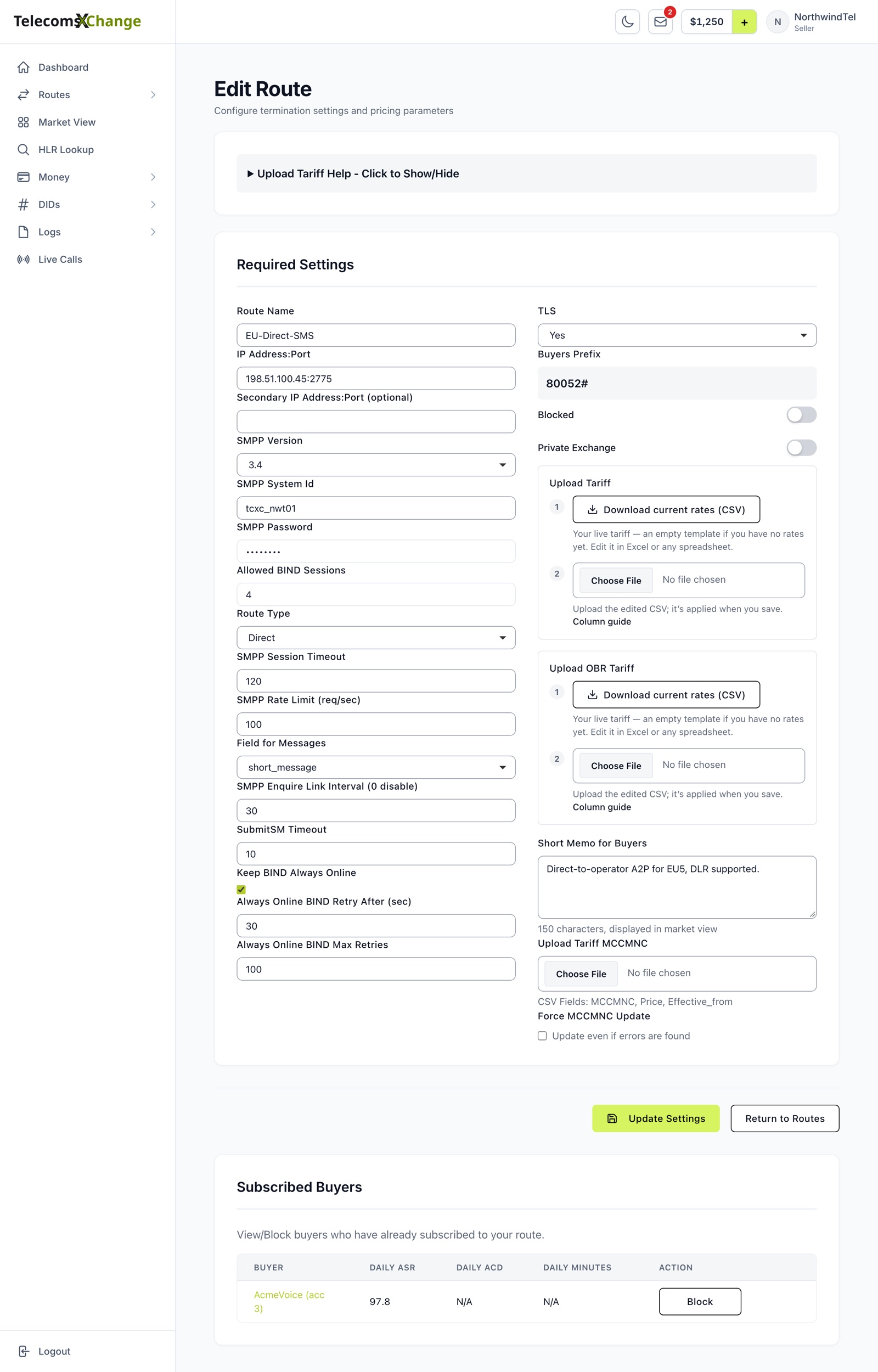

On Edit Route:

• SMPP Version: 5.0 or 3.4, to match your SMSC.
• Allowed BIND Sessions: the number of binds, 1 to 100.
• SMPP Rate Limit (req/sec): the most messages per second TelecomsXchange sends you; messages above it are refused to the buyer.
• SubmitSM Timeout: seconds TelecomsXchange waits for your submit_sm_resp, 1 to 300. After it, the buyer gets a failure and the next route in their routing group is tried.
• Keep BIND Always Online, with Always Online BIND Retry After (sec) (1 to 300) and Always Online BIND Max Retries (1 to 10000): keep a bind up permanently and reconnect when it drops.
• TLS: Yes to bind over TLS.
• Upload Tariff MCCMNC: upload rates by mobile network code instead of prefix; see Upload your rate deck.

Changing the bind settings reconnects: you'll see "Existing BIND will be disconnected, new BIND will be set up with new settings".

How do I price the route?#

Upload a rate deck as for a voice route; Price 1 is the price per message and intervals are ignored. Every change you upload for an SMS route, increases included, applies at once unless you set a later Effective From date.

For each message you accept, your balance is credited the price times the number of segments. Long messages are billed per part: 153 GSM or 67 Unicode characters each.

How do I check the bind?#

• Test Bind: in My Routes, open the route's ⋮ menu and choose Test Bind. TelecomsXchange tries a bind_transceiver for 5 seconds and reports "bind_transceiver was SUCCESSFULL" or "has FAILED" with the PDU, or "Was not able to complete in 5 secs, host/port is probably unreachable".
• Bind Status: the icon in My Routes shows ONLINE or OFFLINE. Click it for the SMPP BIND History: each bind's BIND Date, UNBIND Date, Remote IP and Session ID, kept for 30 days.

What does my SMSC receive?#

• A submit_sm for each message, with the text in the field you chose, concatenated parts with their UDH, and registered_delivery set: TelecomsXchange always asks for a receipt.
• Answer with submit_sm_resp. Status 0 with your message_id accepts the message and bills the buyer; any other status refuses it and the buyer's next route is tried.
• Send a deliver_sm receipt with id:<your message_id> and stat:DELIVRD when the handset confirms. TelecomsXchange marks the message Delivered and relays the receipt to the buyer. Receipts are matched for one day.

How do I see the messages I carried?#

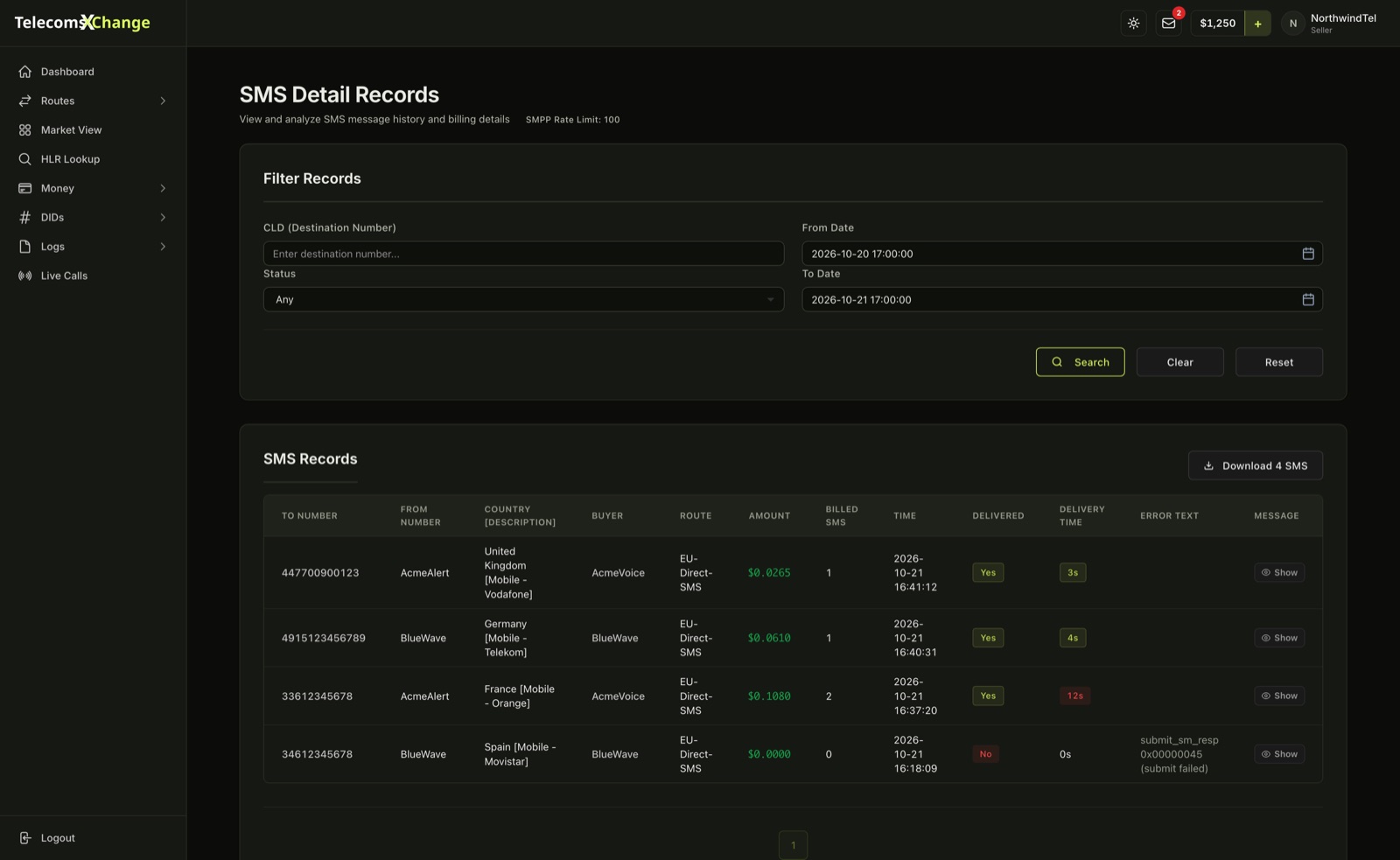

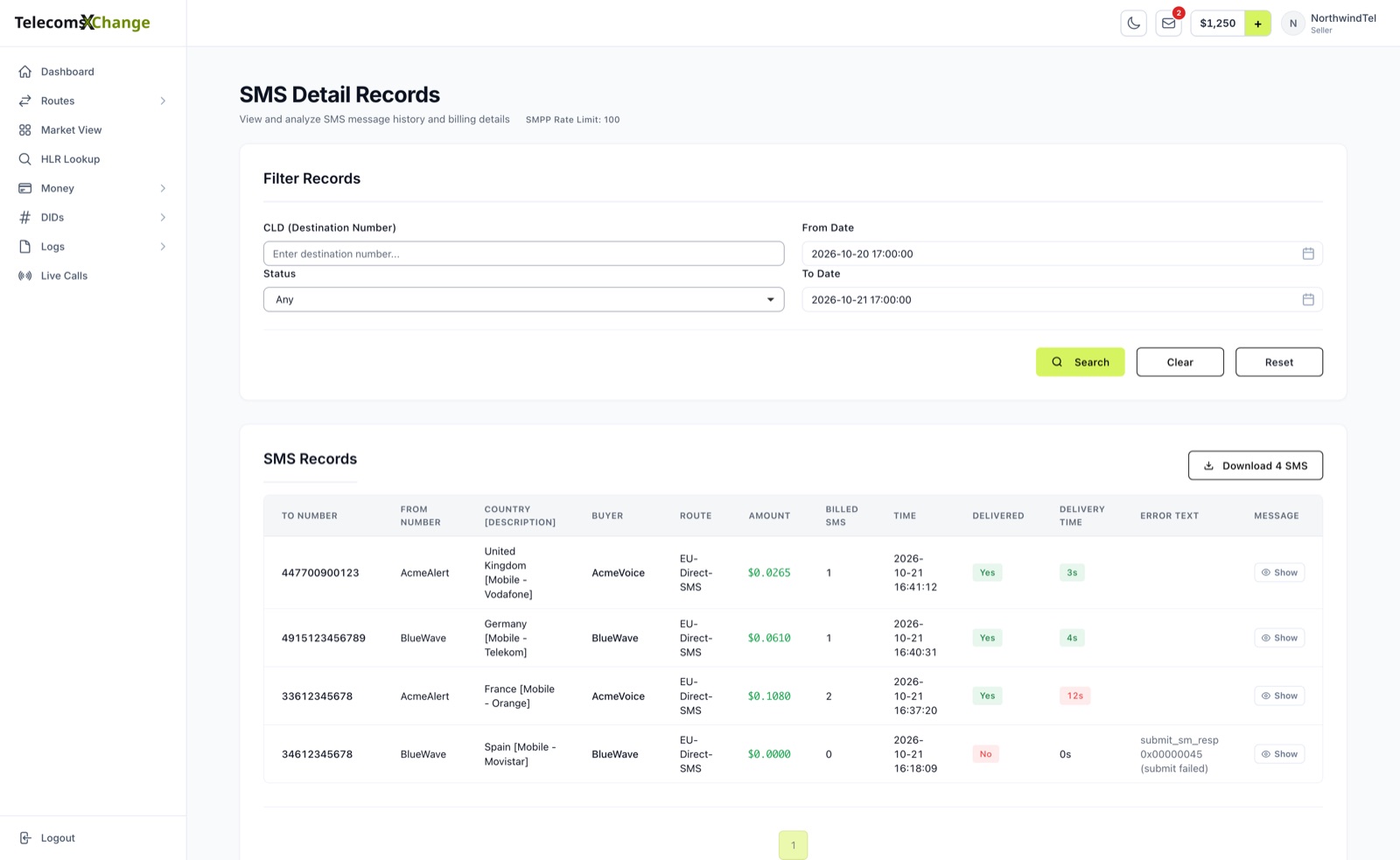

Go to Logs → SDR (SMS). Filter by CLD (Destination Number), Status (Sent, the default, Any or Failed) and From Date and To Date; the page opens on the last 24 hours. Each row shows the To Number (hover for HLR Lookup Number), From Number, Country, Buyer, Route, Amount (your earnings), Billed SMS, Time, Delivered, Delivery Time and, for failures, the Error Text; click to reveal the Message. Download <n> SMS saves them as sms.csv.

The badge at the top shows the SMPP Rate Limit TelecomsXchange has set for your account as a whole.

What about SMS to numbers I sell?#

Messages to phone numbers you sell arrive at TelecomsXchange from your side: your SMSC binds to smpp01.telecomsxchange.com, TCP 2776, with login did and password did, and submits each message to the number. TelecomsXchange forwards it to the buyer's SMPP endpoint and credits you the number's SMS rate. To use your own credentials instead, go to DIDs → My DIDs → Authentication → SMPP DID Authentication, enter an SMPP Login and SMPP Password and click Update Credentials. See Sell phone numbers.
